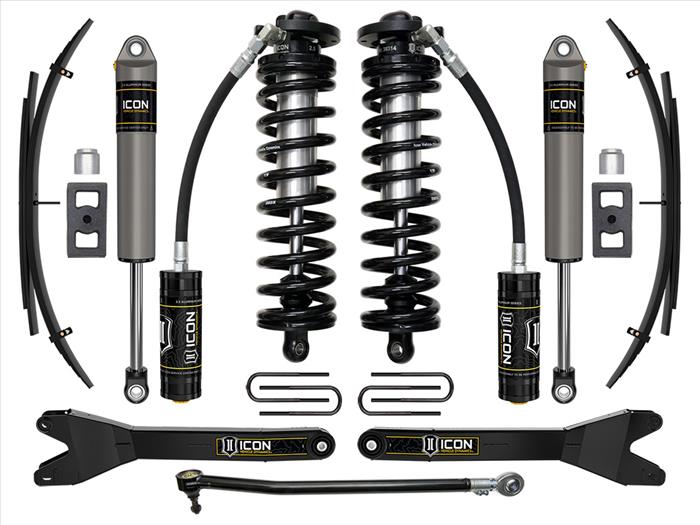

ICON 2023 Ford F-250/F-350 4WD, 2.5-3" Lift, Stage 3 Coilover Conversion System w/ Radius Arms & Expansion Packs at Sexton Offroad in Salt Lake City & Park City, Utah

This ICON Vehicle Dynamics 2.5-3” coilover system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. ICON's Stage 3 System is comprised of ICON 2.5 Series remote reservoir coilovers with adjustable ride height, fabricated Radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series piggyback reservoir rear shocks. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features | Specification:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 2.5-3" of lift
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable track bar ensures proper axle placement and improves handling
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• ICON engineered coil and leaf springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• PPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation.
• APPLICATION NOTE #120: Secondary shock options available, Contact ICON for more details.
• APPLICATION NOTE #151: Fits single rear wheel models only
• APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
• Diesel models without Tremor package will have front lift height range of 2.5-3" over stock
• Diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
• Gas models without Tremor package will have front lift height range of 3-3.5" over stock
• Gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
• Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
• Not compatible with F-350 Cab & Chassis models
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
• Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty XL 2023 4WD
• Ford F-250 Super Duty XLT 2023 4WD
• Ford F-250 Super Duty Lariat 2023
• Ford F-250 Super Duty King Ranch 2023
• Ford F-250 Super Duty Limited 2023
• Ford F-250 Super Duty Platinum 2023
• Ford F-250 Super Duty XLT 2023
• Ford F-350 Super Duty XL 2023 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XL 2023 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XL 2023 Crew Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2023 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2023 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2023 Crew Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2023 Extended Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2023 Crew Cab Pickup 4WD
• Ford F-350 Super Duty King Ranch 2023
• Ford F-350 Super Duty Limited 2023
• Ford F-350 Super Duty Platinum 2023
