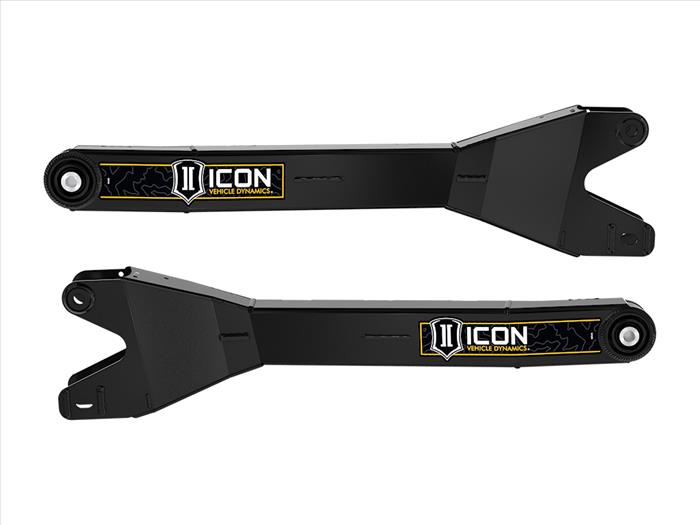

ICON 2023-2024 Ford F-250/F-350 Super Duty 4WD, Radius Arm System at Sexton Offroad in Salt Lake City & Park City, Utah

The ICON Vehicle Dynamics Ford 2023-2024 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings. For taller lift heights from 4-5.5" of front lift, these radius arms can be installed in the factory pivots along with caster bushings to elimiate the need for radius arm drop brackets and improve ground clearance.They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features | Specification:

• Fully boxed design
• Built in caster adjustment for optimized return to center
• Replaceable sealed pivot bushing provides maintenance free operation
• CNC machined and laser cut steel components
• Semi-gloss black powder coat finish
• Ability to have a 5.5" backspace wheel with 37" tires without contact with the arm at steering lock

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: Up to a 37" x 12.50"
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Compatible with 0-3" front lift height without need for caster bushings.
• Compatible 4-5.5" of front lift when paired with caster bushings, part number 62530, or ICON Radius Arm Drop Brackets, part number 64046
• Models equipped with OnBoard Scales and 1.5-3.5" of front lift also require sensor bracket part number 66203
• Models equipped with OnBoard Scales and 4-6" of front lift also require sensor bracket part number 66204

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty Lariat 2023 - 2024
• Ford F-250 Super Duty King Ranch 2023 - 2024
• Ford F-250 Super Duty Platinum 2023 - 2024
• Ford F-250 Super Duty Limited 2023 - 2024
• Ford F-250 Super Duty XL 2023 4WD
• Ford F-250 Super Duty XLT 2023
• Ford F-250 Super Duty XL 2024 4WD
• Ford F-250 Super Duty XLT 2024
• Ford F-350 Super Duty Lariat 2023 - 2024 4WD
• Ford F-350 Super Duty King Ranch 2023 - 2024
• Ford F-350 Super Duty Platinum 2023 - 2024
• Ford F-350 Super Duty Limited 2023 - 2024
• Ford F-350 Super Duty XL 2023 4WD
• Ford F-350 Super Duty XLT 2023 4WD
• Ford F-350 Super Duty Limited 2023
• Ford F-350 Super Duty XL 2024 4WD
• Ford F-350 Super Duty XLT 2024 4WD
