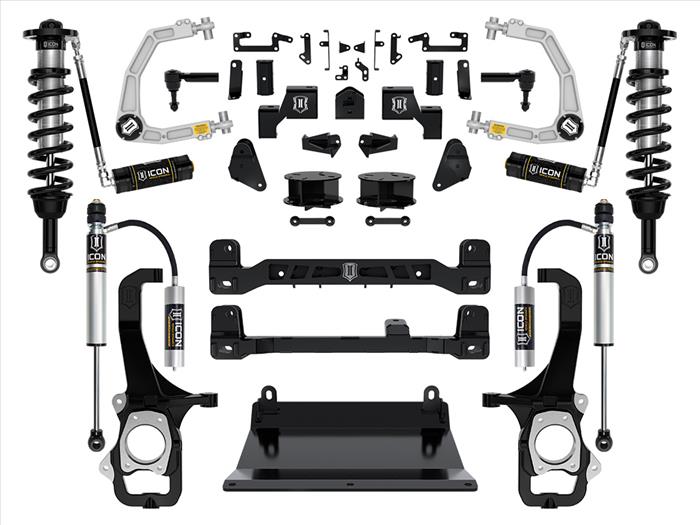

ICON 2022-2023 Toyota Tundra, 6" Lift Stage 3 Suspension System with Billet Upper Control Arms at Sexton Offroad in Salt Lake City & Park City, Utah

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUV’s and off road suspension development. The company’s business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.

Features | Specification:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
• Maintains factory track width
• Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
• Adjustable front ride heights from 5-6" of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
• Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
• Single piece high-strength ductile iron steering knuckles with built-in 4" drop
• Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
• Included sway bar drop brackets reduce bind in OE sway bar links
• Front and rear heavy-duty bump stop brackets
• High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
• 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
• Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
• Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension

Note(s):

• OEM Wheels & Tires Fitment: No
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
• APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install
• Requires minimum of 20" diameter wheels
• Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
• Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
• Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
• Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tundra SR 2022 - 2023
• Toyota Tundra SR5 2022 - 2023
• Toyota Tundra Limited 2022 - 2023
• Toyota Tundra 1794 Edition 2022 - 2023
• Toyota Tundra Platinum 2022 - 2023
• Toyota Tundra Capstone 2022 - 2023
• Toyota Tundra TRD Pro 2022 - 2023
• Toyota Tundra Limited TRD Off-Road 2022
• Toyota Tundra Platinum 1794 Edition 2022
• Toyota Tundra SR TRD Off-Road 2022
• Toyota Tundra SR5 TRD Off-Road 2022
