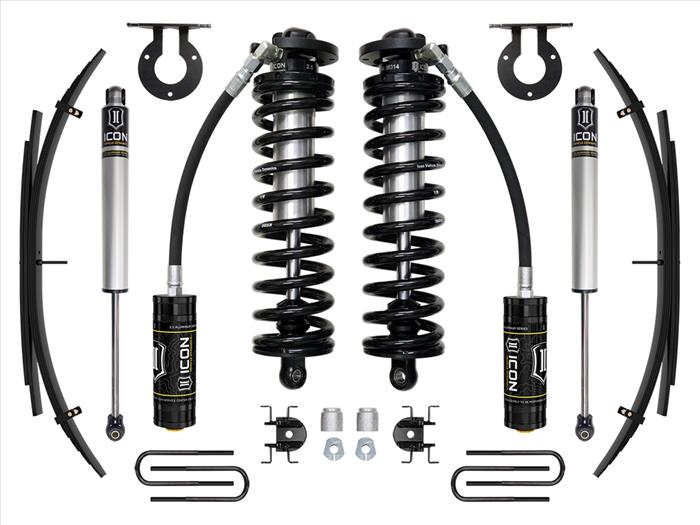

ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5-3" Lift, Stage 1 Coilover System w/ Expansion Packs at Sexton Offroad in Salt Lake City & Park City, Utah

The ICON coilover conversion suspension system is a great way to lift your 4WD 2017-2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Features | Specification:

• Ride height adjustable 2.5 Series remote reservoir coilovers provide 2.5-3" or 3.25-3.75" of front lift over stock
• Vehicle specific tuned internal reservoir 2.0 Aluminum Series rear shocks
• Application specific alignment Cams ensure proper caster alignment
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Improved ride quality and performance compared to stock with no change in towing capacity
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details.
• APPLICATION NOTE #151: Fits Single Rear Wheel Models Only
• Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
• Compatible with 4WD models only
• 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
• 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
• 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
• 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
• 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
• 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
• 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
• Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
• Not compatible with F-350 Cab & Chassis models
• Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty XL 2017 - 2019 4WD
• Ford F-250 Super Duty XLT 2017 - 2019 4WD
• Ford F-250 Super Duty Lariat 2017 - 2019 4WD
• Ford F-250 Super Duty King Ranch 2017 - 2019 4WD
• Ford F-250 Super Duty Platinum 2017 - 2019
• Ford F-250 Super Duty Limited 2018 - 2019
• Ford F-250 Super Duty XL 2020 - 2022 4WD
• Ford F-250 Super Duty Lariat 2020 - 2022 4WD
• Ford F-250 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-250 Super Duty Platinum 2020 - 2022
• Ford F-250 Super Duty Limited 2020 - 2022
• Ford F-250 Super Duty XLT 2020 - 2021 4WD
• Ford F-250 Super Duty XLT 2022 4WD
• Ford F-250 Super Duty Lariat 2023
• Ford F-250 Super Duty King Ranch 2023
• Ford F-250 Super Duty Platinum 2023
• Ford F-250 Super Duty Limited 2023
• Ford F-250 Super Duty XL 2023 4WD
• Ford F-250 Super Duty XLT 2023
• Ford F-350 Super Duty XL 2017 - 2019 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XL 2017 - 2019 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XL 2017 - 2019 Crew Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2017 - 2019 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2017 - 2019 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2017 - 2019 Crew Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2017 - 2019 Extended Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2017 - 2019 Crew Cab Pickup 4WD
• Ford F-350 Super Duty King Ranch 2017 - 2019 4WD
• Ford F-350 Super Duty Platinum 2017 - 2019 4WD
• Ford F-350 Super Duty Limited 2018 - 2019
• Ford F-350 Super Duty XL 2020 - 2022 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XL 2020 - 2022 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XL 2020 - 2022 Crew Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2020 - 2022 Extended Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2020 - 2022 Crew Cab Pickup 4WD
• Ford F-350 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-350 Super Duty Platinum 2020 - 2022 4WD
• Ford F-350 Super Duty Limited 2020 - 2022
• Ford F-350 Super Duty XLT 2020 - 2021 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2020 - 2021 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2020 - 2021 Crew Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2022 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2022 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2022 Crew Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2023 Extended Cab Pickup 4WD
• Ford F-350 Super Duty Lariat 2023 Crew Cab Pickup 4WD
• Ford F-350 Super Duty King Ranch 2023
• Ford F-350 Super Duty Platinum 2023
• Ford F-350 Super Duty Limited 2023
• Ford F-350 Super Duty XL 2023 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XL 2023 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XL 2023 Crew Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2023 Standard Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2023 Extended Cab Pickup 4WD
• Ford F-350 Super Duty XLT 2023 Crew Cab Pickup 4WD
