ICON 2007-2016 GM 1500, Tubular Upper Control Arm Kit w/Delta Joint, Small Taper at Sexton Offroad in Salt Lake City & Park City, Utah

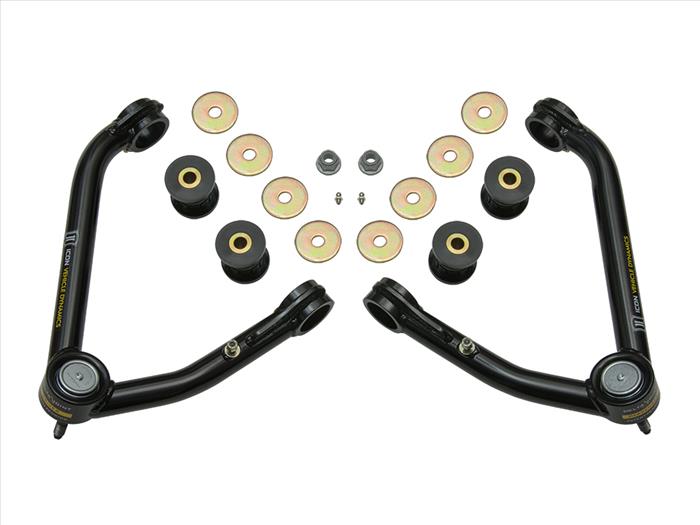

Take the performance of your 2007-2016 GM 1500 truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2007-2016 GM 1500.

These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features | Specification:

• ICON Delta Joint
• 1026 DOM Steel Construction
• CNC Bent Tubing
• Serviceable Dual Stage Bushings
• CNC Machined Bushing Housings and Sleeves
• Built-In Caster Correction
• Black Semi-Gloss Powder Coat Finish

Note(s):

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Arm geometry is optimized for use with 1-3" of front lift over stock
• Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• Small taper applications can be identified by their forged steel OE front lower control arms
• Not compatible with models equipped Magnetic Ride Control
• Not recommended for Hybrid models

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Chevrolet Suburban LT 2014
• Chevrolet Suburban LS 2015 - 2016
• Chevrolet Suburban LT 2015 - 2016
• Chevrolet Suburban LTZ 2015 - 2016
• Chevrolet Silverado 1500 LS 2007 - 2013
• Chevrolet Silverado 1500 LT 2007 - 2013
• Chevrolet Silverado 1500 LTZ 2007 - 2013
• Chevrolet Silverado 1500 WT 2007 - 2013
• Chevrolet Silverado 1500 Base 2007 - 2012
• Chevrolet Silverado 1500 XFE 2010 - 2013
• Chevrolet Silverado 1500 LT 2014 - 2016
• Chevrolet Silverado 1500 LTZ 2014 - 2016
• Chevrolet Silverado 1500 WT 2014 - 2016
• Chevrolet Silverado 1500 High Country 2014 - 2016
• Chevrolet Silverado 1500 Base 2014
• Chevrolet Silverado 1500 Base 2016
• Chevrolet Silverado 1500 LS 2015 - 2016
• Chevrolet Silverado 1500 SSV 2015 - 2016
• Chevrolet Silverado 1500 Custom 2016
• Chevrolet Suburban 1500 LS 2007 - 2013
• Chevrolet Suburban 1500 LT 2007 - 2013
• Chevrolet Suburban 1500 LTZ 2007 - 2013
• Chevrolet Suburban 1500 Base 2007 - 2012
• Chevrolet Suburban 1500 75 Aniversario Diamond Edition 2010
• Chevrolet Suburban 1500 LS 2014
• Chevrolet Suburban 1500 LT 2014
• Chevrolet Suburban 1500 LTZ 2014
• Chevrolet Tahoe LS 2007 - 2013
• Chevrolet Tahoe LT 2007 - 2013
• Chevrolet Tahoe LTZ 2007 - 2013
• Chevrolet Tahoe Base 2007 - 2009
• Chevrolet Tahoe Base 2011 - 2012
• Chevrolet Tahoe Z71 2008 - 2010
• Chevrolet Tahoe PPV 2012 - 2013
• Chevrolet Tahoe SSV 2012 - 2013
• Chevrolet Tahoe LS 2014 - 2016
• Chevrolet Tahoe LT 2014 - 2016
• Chevrolet Tahoe PPV 2014 - 2016
• Chevrolet Tahoe SSV 2014 - 2016
• Chevrolet Tahoe LTZ 2014
• Chevrolet Tahoe Police 2014
• Chevrolet Tahoe LTZ 2015 - 2016
• Chevrolet Tahoe Z71 2016
• GMC Yukon XL SLE 2015 - 2016
• GMC Yukon XL SLT 2015 - 2016
• GMC Sierra 1500 Denali 2007 - 2013
• GMC Sierra 1500 SL 2007 - 2013
• GMC Sierra 1500 SLE 2007 - 2013
• GMC Sierra 1500 SLT 2007 - 2013
• GMC Sierra 1500 WT 2007 - 2013
• GMC Sierra 1500 XFE 2010 - 2013
• GMC Sierra 1500 SLE 2014 - 2016
• GMC Sierra 1500 SLT 2014 - 2016
• GMC Yukon Denali 2007 - 2013
• GMC Yukon SLE 2007 - 2013
• GMC Yukon SLT 2007 - 2013
• GMC Yukon Base 2007 - 2009
• GMC Yukon Base 2011 - 2012
• GMC Yukon SLE 2014 - 2016
• GMC Yukon SLT 2014 - 2016
• GMC Yukon Denali 2014
• GMC Yukon XL 1500 Denali 2007 - 2013
• GMC Yukon XL 1500 SLE 2007 - 2013
• GMC Yukon XL 1500 SLT 2007 - 2013
• GMC Yukon XL 1500 Denali 2014
• GMC Yukon XL 1500 SLE 2014
• GMC Yukon XL 1500 SLT 2014
