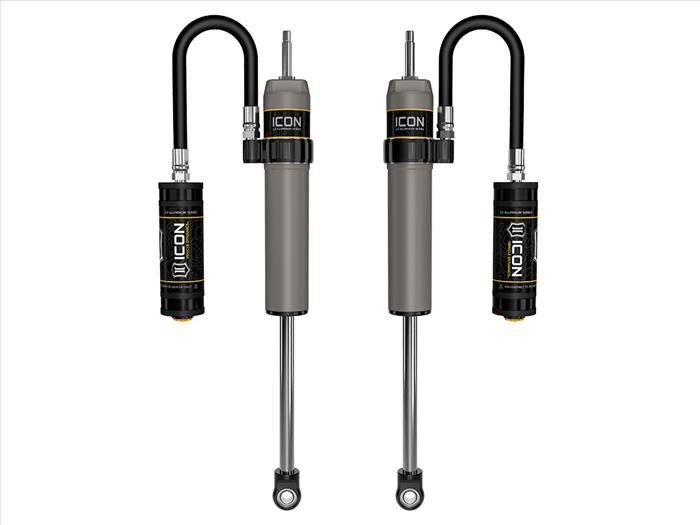

ICON 2005-2024 Ford Super Duty 4WD, 0-2.5” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair at Sexton Offroad in Salt Lake City & Park City, Utah

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features | Specification:

• ICON’s internal “Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Note(s):

• Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
• Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
• Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
• Compatible with 0-3" of front lift over stock of 2023-2024 F-250/F-350 4WD without Tremor package
• Compatible with 0-2” of front lift over stock of 2023-2024 F-250/F-350 4WD equipped with Tremor package
• Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD
• Compatible with 0-3” of front lift over stock of 2023-2024 F-450 4WD
• Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions
• Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Ford F-250 Super Duty XL 2005 - 2019 4WD
• Ford F-250 Super Duty XL 2023 - 2024 4WD
• Ford F-250 Super Duty King Ranch 2005 - 2019 4WD
• Ford F-250 Super Duty XLT 2005 - 2019 4WD
• Ford F-250 Super Duty Lariat 2005 - 2019 4WD
• Ford F-250 Super Duty Harley-Davidson Edition 2005 - 2010
• Ford F-250 Super Duty FX4 2008 - 2014
• Ford F-250 Super Duty Cabela's 2009 - 2010
• Ford F-250 Super Duty Platinum 2013 - 2019
• Ford F-250 Super Duty Base 2015 - 2016
• Ford F-250 Super Duty Limited 2018 - 2019
• Ford F-250 Super Duty Limited 2023 - 2024
• Ford F-250 Super Duty Limited 2020 - 2022
• Ford F-250 Super Duty Lariat 2020 - 2022 4WD
• Ford F-250 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-250 Super Duty Platinum 2020 - 2022
• Ford F-250 Super Duty XL 2020 - 2022 4WD
• Ford F-250 Super Duty XLT 2020 - 2021 4WD
• Ford F-250 Super Duty XLT 2022 4WD
• Ford F-250 Super Duty Platinum 2023 - 2024
• Ford F-250 Super Duty Lariat 2023 - 2024
• Ford F-250 Super Duty XLT 2023 - 2024
• Ford F-250 Super Duty King Ranch 2023 - 2024
• Ford F-350 Super Duty XLT 2005 - 2019 4WD
• Ford F-350 Super Duty XLT 2023 - 2024 4WD
• Ford F-350 Super Duty XL 2005 - 2019 4WD
• Ford F-350 Super Duty XL 2023 - 2024 4WD
• Ford F-350 Super Duty King Ranch 2005 - 2019 4WD
• Ford F-350 Super Duty Lariat 2005 - 2019 4WD
• Ford F-350 Super Duty Harley-Davidson Edition 2005 - 2010
• Ford F-350 Super Duty FX4 2008 - 2009
• Ford F-350 Super Duty Cabela's 2009 - 2010
• Ford F-350 Super Duty Platinum 2013 - 2019 4WD
• Ford F-350 Super Duty Limited 2018 - 2019
• Ford F-350 Super Duty Limited 2023 - 2024
• Ford F-350 Super Duty Lariat 2020 - 2022 4WD
• Ford F-350 Super Duty XL 2020 - 2022 4WD
• Ford F-350 Super Duty Platinum 2020 - 2022 4WD
• Ford F-350 Super Duty King Ranch 2020 - 2022 4WD
• Ford F-350 Super Duty Limited 2020 - 2022
• Ford F-350 Super Duty XLT 2020 - 2021 4WD
• Ford F-350 Super Duty XLT 2022 4WD
• Ford F-350 Super Duty Lariat 2023 - 2024 4WD
• Ford F-350 Super Duty King Ranch 2023 - 2024
• Ford F-350 Super Duty Platinum 2023 - 2024
• Ford F-450 Super Duty 2005 - 2019 4 X 4
• Ford F-450 Super Duty 2023 - 2024 4 X 4
• Ford F-450 Super Duty 2020 - 2022 4 X 4
