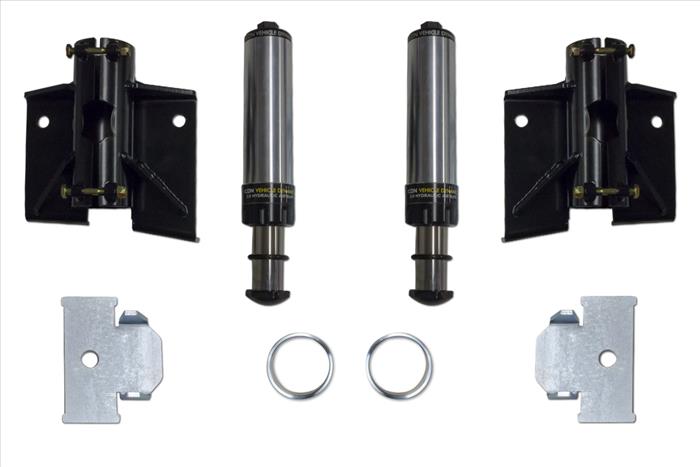

ICON 2005-2023 Toyota Tacoma Rear Hydraulic Bump Stop Kit at Sexton Offroad in Salt Lake City & Park City, Utah

Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.

As part of the kit, ICON includes an industry first selectable install height for the hydraulic air bumpstop so up travel is not limited with use of an aftermarket thicker leaf pack. This allows you to upgrade your leaf springs down the road, and retain maximum up travel without having to purchase a new bump stop bracket kit.

Features | Specification:

• Bolt-on design using existing holes in frame for clean install with no cutting or welding
• Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
• Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
• Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
• Can be returned to stock
• Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
• Anodized billet top cap, o-ring sealed back up cap, seal head and striker
• CAD Plated body for corrosion free service
• Urethane rod seal and wiper for long service life
• User serviceable

Note(s):

• Not compatible with 2005-2015 5-lug RWD Tacoma models

Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:

• Toyota Tacoma Pre Runner 2005 - 2015
• Toyota Tacoma Base 2005 - 2015 4WD
• Toyota Tacoma TRD Sport Prerunner 2006 - 2009
• Toyota Tacoma SR5 Prerunner 2006 - 2009
• Toyota Tacoma Base Prerunner 2006
• Toyota Tacoma TRD Sport 2010 - 2023
• Toyota Tacoma TRD Pro 2015
• Toyota Tacoma TRD Pro 2017 - 2023
• Toyota Tacoma SR 2016 - 2023
• Toyota Tacoma SR5 2016 - 2023
• Toyota Tacoma TRD Off-Road 2016 - 2023
• Toyota Tacoma Limited 2016 - 2023
• Toyota Tacoma Edicion Especial 2016 - 2023
• Toyota Tacoma Sport 2017 - 2023
• Toyota Tacoma Nightshade 2021 - 2023
• Toyota Tacoma Trail 2021 - 2022
• Toyota Tacoma Base 2022 - 2023
• Toyota Tacoma Trail Special Edition 2023
