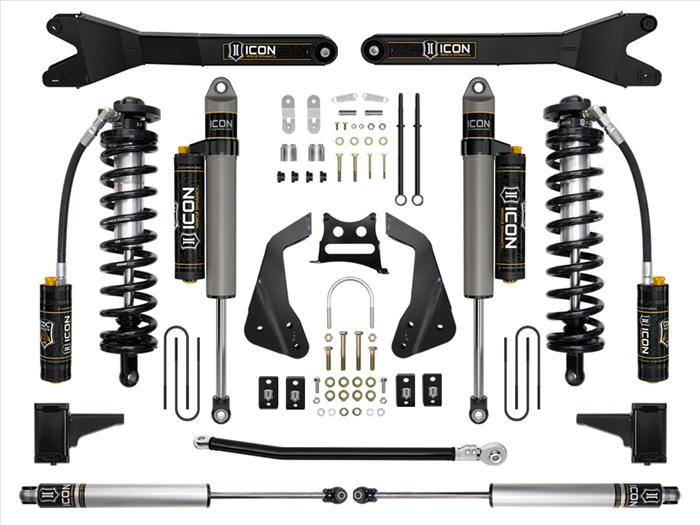

ICON 2005-07 Ford F250/F350 4-5.5" Lift Stage 5 Coilover Conversion w/Radius Arm at Sexton Offroad in Salt Lake City & Park City, Utah

ICON 2005-07 Ford F250/F350 4-5.5" Lift Stage 5 Coilover Conversion w/Radius Arm at Sexton Offroad in Salt Lake City & Park City, Utah

Regular price $7,653.95 USD
Regular price Sale price $7,653.95 USD
Sale Sold out
Shipping calculated at checkout.
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Features | Specification:
  • Bolt-in system fits in OE coil bucket location
  • Eibach coil springs guaranteed for life against sagging or breakage
  • Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK Rod End bearings for extended longevity and minimal deflection
  • Ride height adjustable coilovers (4-5.5")
  • Increased wheel travel and ride quality over stock
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Note(s):
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
  • APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation
  • APPLICATION NOTE #94: Wide Steer Equipped Trucks Require Stabilizer Part Number 66515 Qty 2
  • APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
  • Ships in multiple boxes
Upgrade your 4x4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!

This Item Fits:
  • Ford F-250 Super Duty 2005 - 2007 4WD
  • Ford F-350 Super Duty 2005 - 2007 4WD
